60w high power outdoor solar streetlight
waterproof IP66 LED Solar Street lighting manufacture

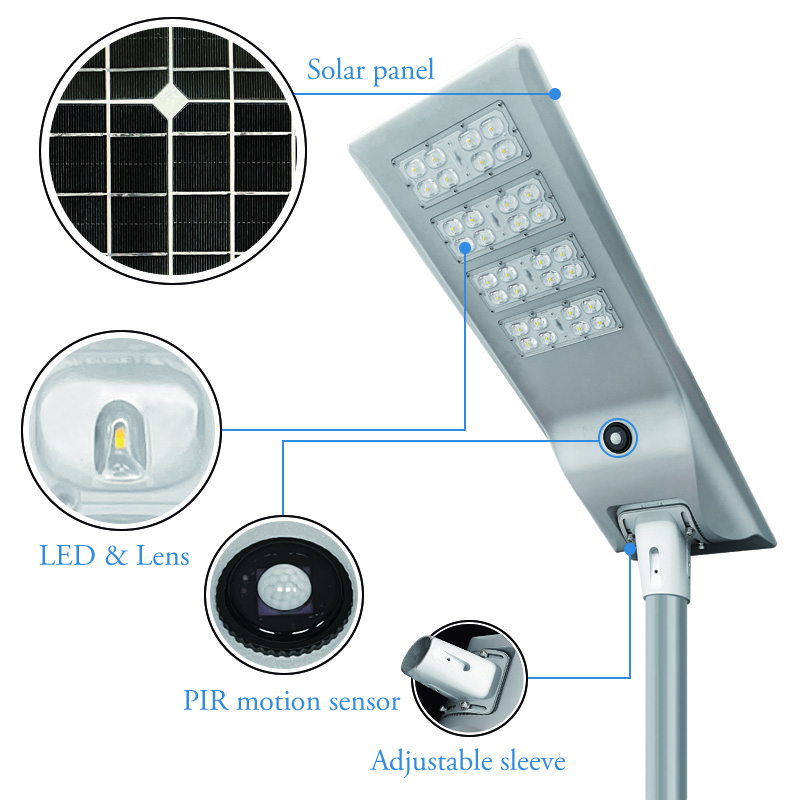

Features:
- 1. Integrated design, making full use of solar resources, simple, stylish, light, and extremely convenient to install. The integrated solar streetlight does not need to be pulled,and two or three people can install one in ten minutes. It provides a variety of installation methods. The lamp post is made from local materials.Iron pillars, wood, bamboo, plastic, etc., low cost.
- 2. Using solar power supply and LED lighting, the two solutions are perfectly combined to save electricity, protect the earth's environment, and save energy.
- 3. Large-capacity and long-life lithium iron phosphate battery is adopted, with a theoretical service life of 5 years, good high-temperature characteristics and long service life,
- ensuring the service life of the entire product.
- 4. Alloy material is used as the main structure, which has good anti-rust and anti-corrosion functions; rainproof structure, safe and reliable.
- 5. Bulit-in with PIR sensor, when someone approaches, the light will be fully on for 60 seconds. When the person walks away, the light will automatically reduce to 50% brightness, effectively saving electricity energy.
Use:
This product is easy to use, with one-button operation, as long as the switch is turned on, the product can work normally without adjustment.
Note:
- 1. Do not disassemble the product without the guidance of our technical personnel;
- 2. When installing the product, try to avoid trees, buildings, etc.
ម៉ូដែល៖ | EK-SSL03-L01 | EK-SSL03-L02 | EK-SSL03-L03 |
បន្ទះសូឡាម៉ូណូ | 6V 40W | 6V 50W | 6V 60W |
សមត្ថភាពថ្ម | 3.2V 42AH | 3.2V 54AH | 3.2V 60AH |
CCT | 2700K-6500K | 2700K-6500K | 2700K-6500K |
ពន្លឺ | 180LM/W | 180LM/W | 180LM/W |
លំហូរពន្លឺ | 2400-2600LM | 3500-3600LM | 5900-6000LM |
ពេលវេលាសាកថ្ម | 6-8 ម៉ោងដោយពន្លឺព្រះអាទិត្យភ្លឺ | 6-8 ម៉ោងដោយពន្លឺព្រះអាទិត្យភ្លឺ | 6-8 ម៉ោងដោយពន្លឺព្រះអាទិត្យភ្លឺ |
ម៉ោងធ្វើការ | 12-15 ម៉ោង (5-7 ថ្ងៃភ្លៀង) | 12-15 ម៉ោង (5-7 ថ្ងៃភ្លៀង) | 12-15 ម៉ោង (5-7 ថ្ងៃភ្លៀង) |
របៀបគ្រប់គ្រង | ការគ្រប់គ្រងពេលវេលា + ការបញ្ចូលមីក្រូវ៉េវ ឬអាំងហ្វ្រារ៉េដ | ការគ្រប់គ្រងពេលវេលា + ការបញ្ចូលមីក្រូវ៉េវ ឬអាំងហ្វ្រារ៉េដ | ការគ្រប់គ្រងពេលវេលា + ការបញ្ចូលមីក្រូវ៉េវ ឬអាំងហ្វ្រារ៉េដ |
ការវាយតម្លៃ IP | IP66 | IP66 | IP66 |
ការឡើងភ្នំ | 6-8M | 6-8M | 6-8M |
ការដំឡើងចន្លោះរវាងចង្កៀង 2 | 20-30M | 20-30M | 20-30M |
រន្ធម៉ោន | φ78 ម។ | φ78 ម។ | φ78 ម។ |
ការបញ្ចប់លំនៅដ្ឋាន | ថ្នាំកូតម្សៅ polyester | ថ្នាំកូតម្សៅ polyester | ថ្នាំកូតម្សៅ polyester |
ពណ៌ស្តង់ដារ | Gra ខ្មៅ/ប្រាក់ | Gra ខ្មៅ/ប្រាក់ | Gra ខ្មៅ/ប្រាក់ |
សម្ភារៈ | អាលុយមីញ៉ូម Alloy Tempered Glass Polycarbonate | អាលុយមីញ៉ូម Alloy Tempered Glass Polycarbonate | អាលុយមីញ៉ូម Alloy Tempered Glass Polycarbonate |
វិញ្ញាបនបត្រ | CE/RoHS | CE/RoHS | CE/RoHS |
ការធានា | 5 ឆ្នាំ។ | 5 ឆ្នាំ។ | 5 ឆ្នាំ។ |
Dissemble illustration
Application:
IP66: The dust density completely prevents the foreign matter invasion and may completely prevent the dust invasion,Prevents the spray water invasion, prevents from all directions by the nozzle spray water enters the lamps to cause the damage.
IK08: កម្លាំងប៉ះពាល់ 10J ស្មើនឹងឥទ្ធិពលនៃវត្ថុ 5KG ដែលធ្លាក់ពីកម្ពស់ 200mm លើផ្ទៃមួយ។
