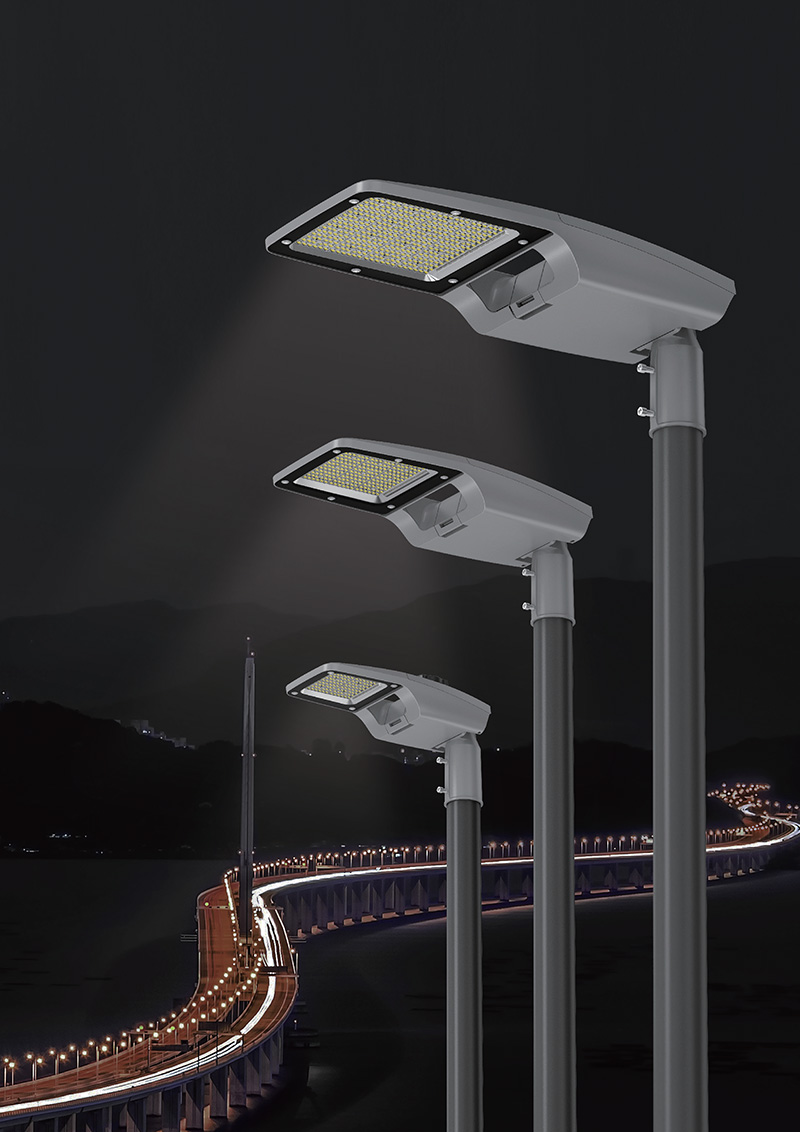

EK-LD15 200w led street light ip66 outdoor street led lighting

Smooth appearance and line design

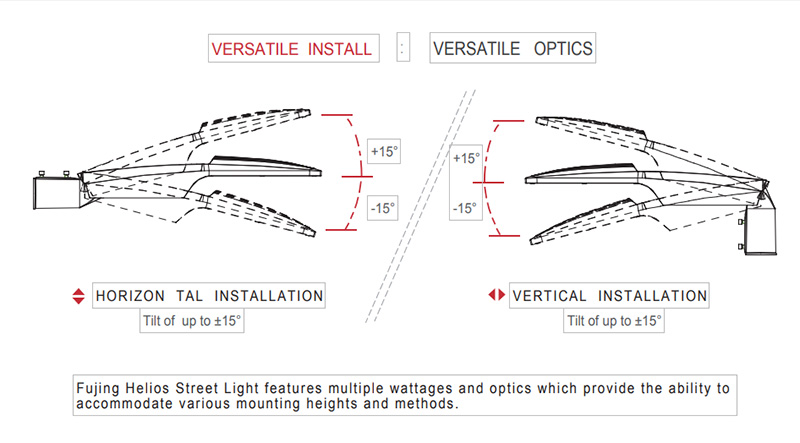

can be installed horizontally and vertically,and the adjustable angle is ± 15 °
The protection grade is IP66 and IK08

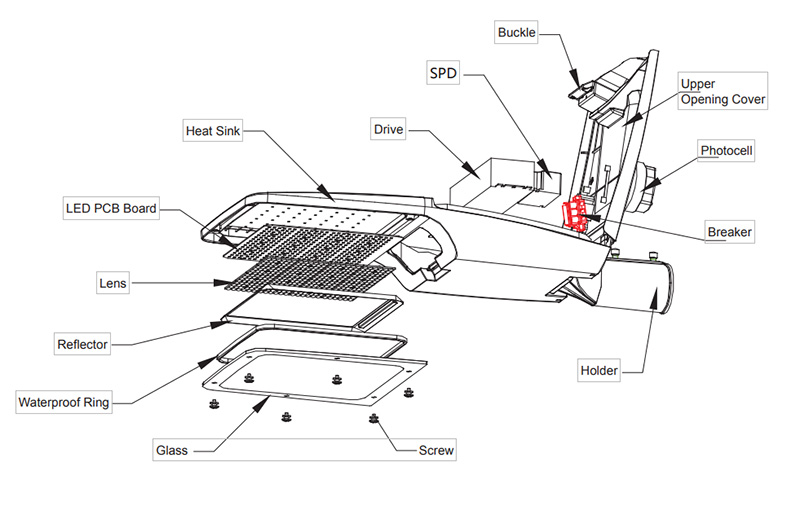

Tool-less opening of driver box, ease ofmaintenance
ADC12 high-pressure cast aluminum one-piece shell great help for heat dissipation
High strength tempered glass lampshade withstronger light transmission performance
The hollow design is adopted between the light source and the drive room to improve theair flow rate and heat dissipation capacity

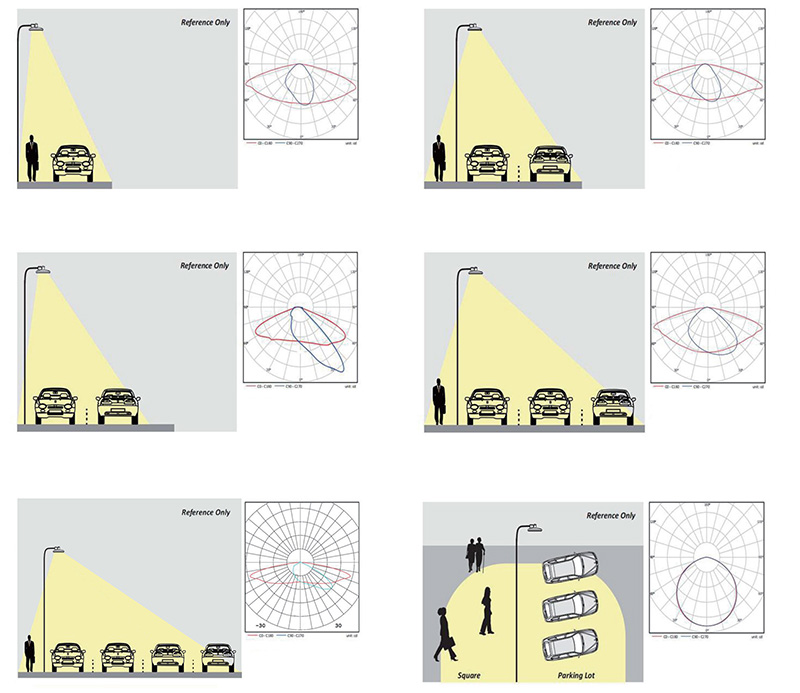

Type Ⅰ/Ⅱ/Ⅲ/Ⅳ/Ⅴlight distribution can meetthe different requirements of road lighting.
Strobo-free stable optical output, power factor0.95 Maintain the stability of the power grid

Product Datasheet
ធាតុលេខ	EK-LD15-20W	EK-LD15-30W	EK-LD15-50W	EK-LD15-60W	EK-LD15-80W	EK-LD15-100W	EK-LD15-120W	EK-LD15-150W
ថាមពល	20W	30W	50W	60W	80W	100W	120W	150W
Lumen Efficiency	130lm/w	130lm/w	130lm/w	130lm/w	130lm/w	130lm/w	130lm/w	130lm/w
Lumen	2600lm	3900lm	6500lm	7800lm	10400lm	13000lm	15600lm	19500lm
Product Size（mm）	498×180×115	498×180×115	498×180×115	629×250×125	629×250×125	629×250×125	629×250×125	698×280×115
Electrical Data
Working Voltage	AC100-265V｜50/60Hz
LED	Lumileds / Epistar
CCT	3000K, 4000K, 5000K, 6000K
CRI	Ra>70 (Default) / Ra>80
Driver	Meanwell/Philips/Inventronics/OSRAM and so on
THD	<15%
Power Factor(PF)	PF＞0.95
General Data
IP Rating	IP66
IK Rating	អាយខេ០៨
Holder	50mm/60mm(Default)
សម្ភារៈរាងកាយ	High pressure die-cast aluminum
Housing Color	RAL9007(available on request)
Cover Material	UV-resistant Polycarbonate
បរិយាកាសការងារ	-20℃～+50℃，10%～90%RH
Lifespan L70 at 25℃	＞50,000hrs
Mounting Type	Side entry or Vertical pole mounted ±15°
Dimmable	1-10V Dimming /Timer Dimming/Dali Dimming
Protection Class	Class Ⅰ(Defauit)/Class Ⅱ
Standards	CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IP66, IK08
Available on request	Solar Compatible, NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, Motion sensor, NTC, OLC, DALI Dimming
Reasonable tolerance	Watt: ±10%，CCT: ±500K, Lumen efficiency: ±5%
